燃料电池双极板
本公司所开发燃料电池双极板在加工中采用了新型的粘结剂，使此燃料电池双极板既具有优良的导电性与耐腐蚀性，又具有较高的机械强度与良好的气体密封性，并且由于采用了直接热压成型的成型方式，因此简化了生产流程，也降低了加工成本。
graphite powder and resin are mixed and prepared, then the mixed materials and molds are processed, using the polymer’s melting temperature and a certain pressure, so that the powder flows in the mold and fills the entire container, curing and demolding to obtain the Fuel Cell Bipolar Plates
Molding process for manufacturing bipolar plates can effectively solve the problems of high processing cost and large-scale production. We are currently developing this process.

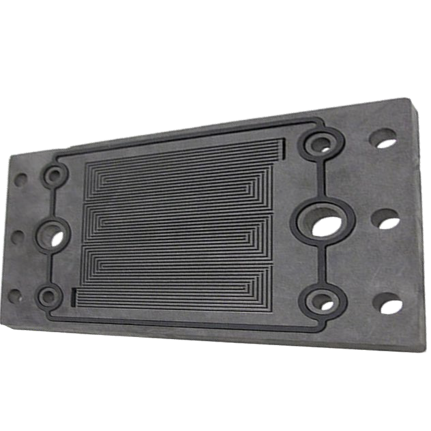

Fuel Cell Bipolar Plates
G3-01 is obtained by impregnating high-quality graphite with resin and then by machining, which not only ensures strict dimensional standards, but also possesses high electrical conductivity and mechanical strength; it can be used in proton exchange membrane fuel cell stacks, which guarantees high performance and longer service life.
Product Physical and Chemical Properties
| 检验项目Test Item | 单位Unit of Measure | Numerical Value数值 |
| 密度Density | （g/cm3） | ＞1.9 |
| 抗弯强度Flexural Strength | （MPa） | ＞45 |
| 剪切强度Shearing Strength | （MPa） | ＞15 |
| 抗压强度Compressive Strengths | （MPa） | ＞130 |
| 肖氏硬度Shore Hardness | HRS | ＞80 |
| 电阻率Resistivity | （mΩ*cm） | ＜1.1 |
| 电导率 Conductivity | （S/cm） | ＞900 |
Dimensional Machining Accuracy
| 外观参数Appearance Parameters | 单位Unit of Measure | 尺寸加工精度Dimensional Machining Accuracy |
| 极板长Polar Plate Length | mm | ±0.1 |
| 流场脊宽度Width of Flow Field Ridge | mm | ±0.05 |
| 流场槽宽度Width of Flow Field Slot | mm | ±0.05 |
| 流场槽深Flow Field Slot Depth | mm | ±0.05 |
| 密封槽宽度Sealing Groove Width | mm | ±0.05 |
| 密封槽深度Sealing Groove Depth | mm | ±0.03 |
| 极板厚度Polar Plate Thickness | mm | ±0.05 |
Molded Composite Bipolar Plate Product Introduction
G5-01 is obtained by first mixing optimized graphite powder, resin and other auxiliary materials, and finally the powder is hot-pressed, which ensures strict dimensional standards while possessing high electrical conductivity and mechanical strength in a single molding; it can be used in proton exchange membrane fuel cell stacks to ensure high performance and longer service life.
Product Physical and Chemical Properties
| 检验项目Test Item | 单位Unit of Measure | 测试值Test Value |
| 厚度偏差Thickness Deviation | mm | ±0.02 |
| 密度Density | g/cm3 | ＞1.9 |
| 抗弯强度Flexural Strength | MPa | ＞30 |
| 剪切强度Shearing Strength | MPa | ＞15 |
| 电导率Conductivity | S/cm | ＞150 |
| 电阻率Resistivity | mΩ*cm | ＜66 |
Liquid Flow Battery Graphite Plate
The application of energy storage technology can smooth the output of renewable energy, improve the grid connection rate, reduce the abandonment rate, and can be widely used in all aspects of modern power system, including generation, transmission, distribution, transformation and utilization. Among many electric energy storage technologies, flow battery has become one of the mainstream technologies with the advantages of high safety, large energy storage capacity, power and energy decoupling, long life and relatively friendly environment. It realizes the mutual conversion of electric energy and chemical energy through the reversible redox reaction of dissolved active substances.
Graphite plate has the advantages of high chemical stability, good corrosion resistance, high electrical conductivity and low density.Our company has mature graphite plate production and processing technology.
As an important part of the liquid current battery, bipolar Fuel Cell Bipolar Plates play the roles of separating and connecting the batteries in series, conducting current, and providing structural support for the power stack. Therefore, the bipolar plate needs to have high electrical conductivity, mechanical strength, airtightness and corrosion resistance, and at the same time, it should have the characteristics of easy processing and low cost.
Machined Bipolar Plates Product Profile
G6-01 is an isostatically pressed graphite sheet impregnated with resin to provide high mechanical strength, low permeability, high electrical conductivity, and resistance to strong acids to ensure high performance and longer service life.
Product Physical and Chemical Properties
| 检验项目Test Item | 单位Unit of Measure | 数值Numerical Value |
| 密度Density | （g/cm3） | ＞1.9 |
| 抗弯强度Flexural Strength | （MPa） | ＞45 |
| 剪切强度Shearing Strength | （MPa） | ＞15 |
| 抗压强度Compressive Strengths | （MPa） | ＞130 |
| 腐蚀电流密度Corrosion current density | μA/cm2 | ＜12 |
| 电阻率Resistivity | （mΩ*cm） | ＜1.1 |
| 电导率Conductivity | （S/cm） | ＞900 |
